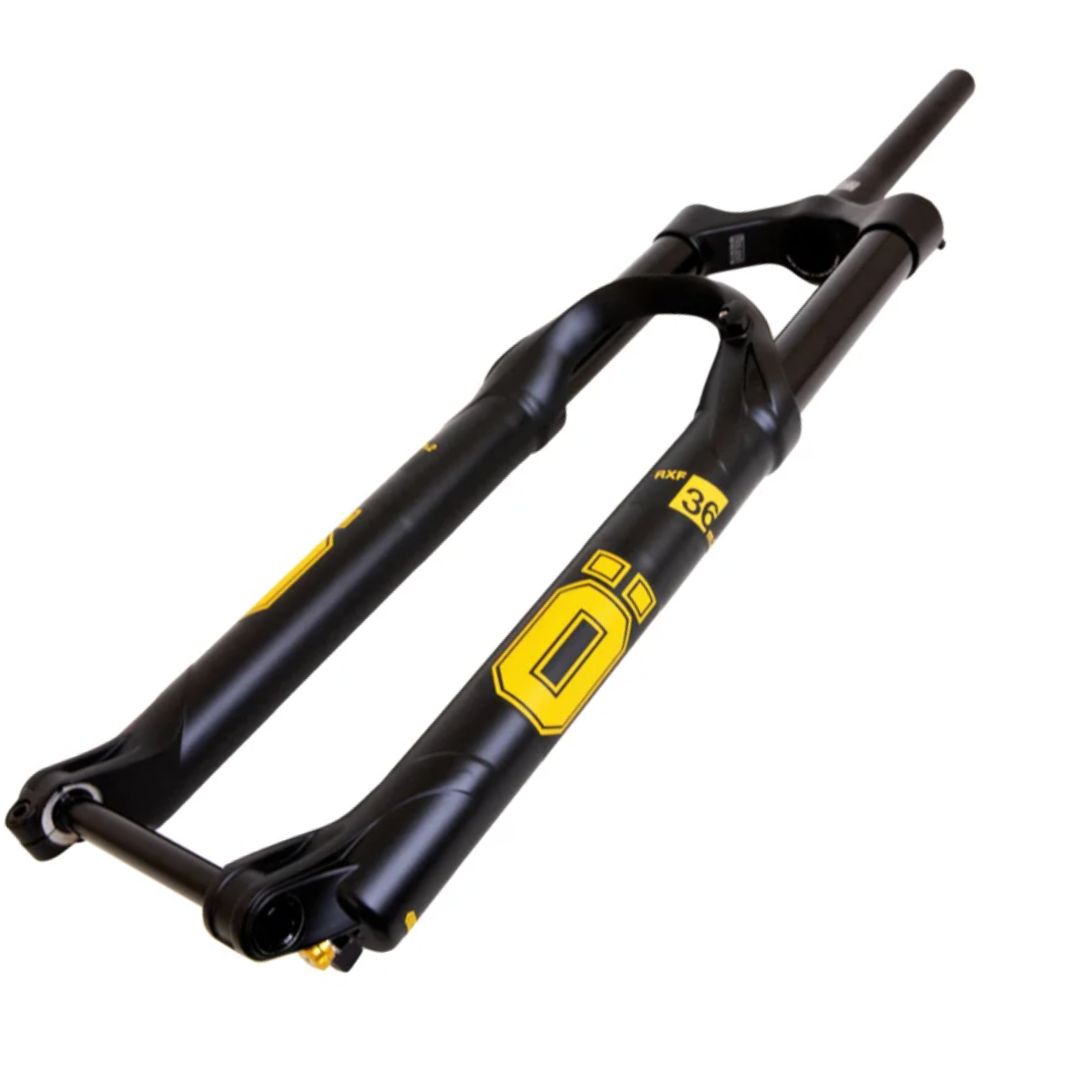

Ohlins RXF36 M.2 Air TTX18 Fork

The race proven TTX 18 dampening from the DH38 Race Fork has been reworked to give optimal traction and control on trails and Enduro race courses. The TTX 18 cartridge kit featuring trail-optimized 18 mm piston for improved small bump sensitivity. With increased damping pressure bandwidth the damping valve response and sensitivity has improved.

£1,100.00

The race proven TTX 18 dampening from the DH38 Race Fork has been reworked to give optimal traction and control on trails and Enduro race courses. The TTX 18 cartridge kit featuring trail-optimized 18 mm piston for improved small bump sensitivity. With increased damping pressure bandwidth the damping valve response and sensitivity has improved.

The adjustment range is specifically for trail to Enduro race use with 15 clicks of low-speed compression and low-speed rebound. For high-speed compression you get 3 clicks plus a climb mode setting. Retuned twin-piston three-chamber air spring system allowing total air spring tuning from the initial movement through to the bottom out.

Improved tyre clearance, the chassis will take up to a whopping 27.5×2.8. There are many technical improvements in the fork but we did not stop there, the design has also been updated and matches what you see on the race courses.

Features

  • TTX-technology
  • Air: travel 150-180 mm
  • Independent spring system
  • Independent damper system
  • Retuned air spring system
  • 36 mm upper tube diameter
  • Offset 46 mm or 38 mm
  • E-bike approved
  • Race proven setting bank
  • Overall improvements for reducing friction
  • Possible to change between coil and air spring
  • Compatible maximum tire sizes 27.5 x 2.8
  • Compatible maximum tire sizes 29×2.8 / 27.5+ x 3.2
